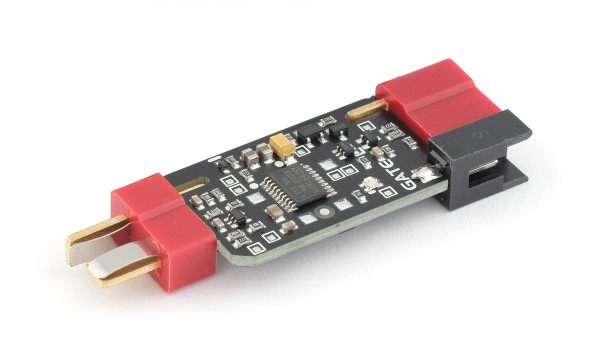

The WARFET is an advanced AEG Control System with 20 functions and almost 6 million possible configurations. The included Tactical Programming Card provides easy access to the WARFET Power Module settings.

Thanks to the Pre-cocking and Smart Trigger functions, you can achieve a realistic trigger response. The Programmable Burst (1-5 rounds) enables you to fire a pre-determined number of BBs, which is very useful in MILSLIM and when using low-caps. ROF Control, allows you to reduce the rate of fire, so you can use stronger LiPo batteries, and maintain a lower ROF. If your AEG becomes jammed, the Smart Fuse protects the battery and the motor against damage. It also prevents deep battery drain. Moreover, with the WARFET you get: Mosfet, ON/OFF Active Brake, Built-in self-test, Debouncing, and many more useful functions, great electrical specifications and conformal coating (military specifications: MIL-V-173C).

Features

• User-friendly configuration via the Tactical Programming Card
• Sturdy and super-compact WARFET Power Module
• Compatibility with the strongest AEG replicas and batteries (ready to work with LiPo 14.8V, 5000 mAh, 60C)
• Tested with car batteries
• Super-easy installation thanks to Mini Tamiya adapters, you can connect the WARFET to stock connectors
• Works with most built-in MOSFETs
• With stock wiring, WARFET reduces melting switch assemblies
• In hardwired installation, the WARFET directs the energy from the battery directly to the motor, bypassing the mechanical trigger contacts
• Resistant to extreme atmospheric conditions (military specifications: MIL-V-173C)
• Deep-drain protection for 7.4V, 11.1V, 14.8V LiPoly and 9.6V, 12.8V LiFePO4
• Improves battery life, ROF, spring life and gearbox reliability

Specifications

• Input Voltage: 3-17V
• Short Circuit Protection: up to 1000A
• Passive Power Consumption: 0.2mA
• Resistance: 2mΩ
• Dimensions: 56x20x9mm
• Weight: 9.4g

Box contents

Full Set

• Tactical Programming Card
• WARFET Power Module
• Battery Mini Tamiya adapter
• AEG Mini Tamiya adapter
• Pair of Deans-T Connectors
• Single Trigger Wire
• Double Trigger Wire
• Quickstart Guide

Power Module

• WARFET Power Module
• Battery Mini Tamiya adapter
• AEG Mini Tamiya adapter
• Pair of Deans-T Connectors
• Single Trigger Wire
• Double Trigger Wire

Tactical Programming Card

The Tactical Programming Card provides you with easy access to the WARFET Power Module settings. All you need to do is to connect the Tactical Programming Card between the battery and the Power Module. A big advantage is that there is no need to use additional wires. The WARFET Power Module can be fitted out of view in your AEG, and you still have easy access to its settings. The Tactical Programming Card communicates with the WARFET Power Module and displays the most recently saved settings. You can simply change them using three buttons.

• Supply voltage: 5-17V
• Number of LEDs: 29
• Number of buttons: 3
• Dimensions: 67x53x7mm
• Weight: 27.3g

Functions

Tactical Programming Card

The Tactical Programming Card provides you with easy access to the AEG Controller settings. All you need to do is connect the Tactical Programming Card between the battery and the Controller.

Pre-Cocking

For the ultimate trigger response the WARFET can stop the gearbox when the spring is fully compressed to minimise the delay between pulling the trigger and the gun actually firing. There are three levels Pre-cocking available in AUTO or SMART mode, in SMART mode a slow trigger pull will compress the spring and a faster trigger pull will fire the shot. (NOTE: Pre-Cocking will increase wear and tear on the gearbox).

Plug & Play

Super-easy installation, just plug and play. No soldering required. All you need to do is connect the battery and the rifle to the AEG Controller.

Programmable Burst

Burst enables you to shoot a pre-determined number of BBs (1-5 rounds), which is very useful in MILSLIM and when using low-caps. You can transform AUTO MODE to BURST MODE or SEMI MODE to BURST MODE*. The Tactical Programming Card allows you to set the burst time. The AEG Controller automatically corrects the burst time according to the voltage level of the battery.

*SEMI to BURST in modified installations only.

3 Round Burst

Burst mode enables you to make a series of 3 shots. Helping you save ammunition and increase realism. You can change AUTO mode to BURST mode or SEMI* mode to BURST mode.

If in SAFE/SEMI/BURST mode you release the trigger earlier, you can make one or two shots. The burst time is set in the menu with accuracy to 4ms. The processor actively compensates for the change in burst time with a decrease in the rate of fire due to battery discharging.

*SEMI to BURST in enhanced mode only

Configurable Fire Selector

The function gives you the option to program your fire selector. There are five modes:

• Stock Wiring: SEMI/AUTO
• Stock Wiring: SEMI/BURST
• Modified Wiring: SEMI/AUTO
• Modified Wiring: SEMI/BURST
• Modified Wiring: BURST/AUTO

Rate of Fire Control

This ensures there is no loss of the rifle’s rate of fire, so you can use stronger LiPo batteries, and still have ROF just like a real gun.

Smart Trigger

The Smart Trigger sets the ROF control to 100% during the first shot and then switches to the previously programmed value allowing a faster trigger response even with a reduced rate of fire. The best results can be achieved by using a battery with a higher than standard voltage. For example, if you use a 7.4V battery, you can replace it with 11.1V. In this way, you will achieve a faster trigger response with the same rate of fire as with a standard battery. The Smart Trigger is most effective when the Burst time is set at 3 rounds.

Battery Protection

Protection against Over-Discharge of the Battery. Modern LiPo and LiFe batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor monitors the battery voltage constantly. When the voltage drops down to a critical level, the Controller will not allow firing.

Smart Fuse

We have developed an electronic fuse with an accurate current sensor. A combination of current, voltage and temperature measurements makes your AEG installation highly reliable. It protects the MOSFET against overheating, overloading and short-circuiting. If your airsoft gun becomes jammed, the function protects the motor and battery against damage.

Electronic Fuse

We know how important reliability is on the battlefield. That’s why the unit has thermal protection. In tandem with a time-lag fuse, it fully protects your AEG installation.

Active Braking

The Controller provides you with the opportunity to decide if you want to use the Active Brake function. If you do not need this, you can turn it off easily to preserve the lifespan of your motor.

MOSFET

Do you want to achieve a higher rate of fire and faster trigger response? Are you planning a power upgrade of your rifle? In that case, you need a MOSFET.
It targets the energy from the battery directly to the motor, bypassing the mechanical trigger contacts. As a result, you gain a higher rate of fire of the rifle and a faster trigger response, and the contacts are protected against burn out.

Debouncing

This provides full compatibility with the micro-switches. It ensures full resistance to contact bounce (vibration). You gain increased ROF, a faster trigger response and your MOSFET is less prone to overheating.

Built-in Self-Test

It allows you to quickly check whether the AEG Controller works properly. If you have problems with your AEG, the BUILT-IN SELF-TEST allows you to check that the problem is not caused by the Controller.

3rd Generation MOSFET

The advent of modern transistors and microcontroller has enabled the creation of the smallest and most reliable AEG Controller on the market.

Dark Mode

DARK MODE allows you to turn off the green LED which light up when a gun is firing. This function is especially useful during night games.

Coating

Thanks to its special conformal coating, it is resistant to atmospheric conditions (Military Specification MIL-V-173C).

14.8V LiPo Ready

The system can be used with batteries up to 14.8V LI-PO. Minimum operating voltage is 3V and maximum voltage is 17V.

Hardwired

In the case of a hardwired installation, the Controller draws the power from the battery directly to the motor, bypassing the mechanical trigger contacts. This requires a modification of the AEG installation.

Mini Tamiya Ready

Thanks to the Mini Tamiya Adapters included in kit, you can easily connect the AEG Control System to your original installation.
