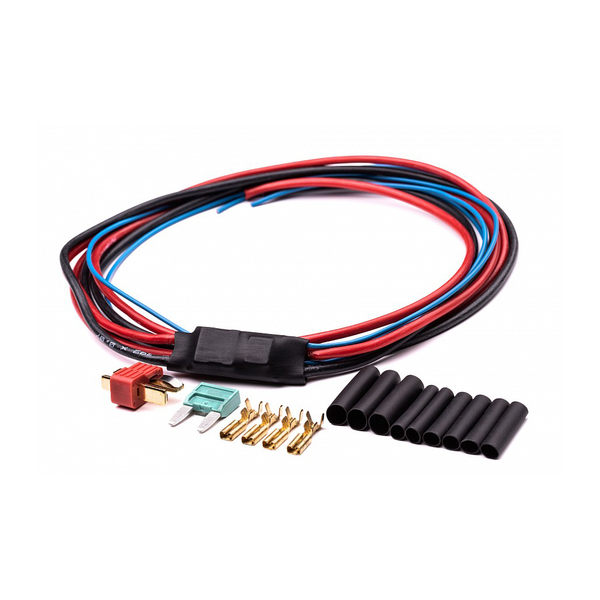

JeffTron Active Brake II with Wiring

£32.00

Upgrade your AEG for peak performance with the JeffTron Active Brake II, a professional-grade MOSFET featuring motor braking technology.

This simple device is soldered between the motor, gearbox and battery to ensure a full cycle with every trigger pull, eliminating jams when firing semi-auto. The Active Braking feature briefly reverses the current through the motor bringing it to a faster more precise stop.

  • Pre-soldered wires for faster and easier install
  • Durable compact design
  • Enhances trigger response and rate of fire
  • Improves battery efficiency
  • Reduces stress and wear on the gearbox
  • Conformal coated for water resistance
  • No current consumption when idle
  • Eliminates arcing between switch contacts

Specifications

  • Maximum spring rating: M210
  • Maximum battery voltage: 17V
  • Current limit: Semi-auto 150A / Auto 50A
  • Dimensions: 35x13x7mm
  • Power wire gauge: AWG16
  • Signal wire gauge: AWG22

Installation notes

  • Installation requires delicate soldering. Seek a professional if you are not confident in performing the work. We accept no liability for any issues arising from improper installation.
  • A high torque motor is recommended to utilise the active braking feature.
  • A functional cut- off lever, selector plate, anti-reversal latch, trigger and trigger block are required for correct functionality.
Full Description
Qty
  • Description

    Upgrade your AEG for peak performance with the JeffTron Active Brake II, a professional-grade MOSFET featuring motor braking technology.

    This simple device is soldered between the motor, gearbox and battery to ensure a full cycle with every trigger pull, eliminating jams when firing semi-auto. The Active Braking feature briefly reverses the current through the motor bringing it to a faster more precise stop.

    • Pre-soldered wires for faster and easier install
    • Durable compact design
    • Enhances trigger response and rate of fire
    • Improves battery efficiency
    • Reduces stress and wear on the gearbox
    • Conformal coated for water resistance
    • No current consumption when idle
    • Eliminates arcing between switch contacts

    Specifications

    • Maximum spring rating: M210
    • Maximum battery voltage: 17V
    • Current limit: Semi-auto 150A / Auto 50A
    • Dimensions: 35x13x7mm
    • Power wire gauge: AWG16
    • Signal wire gauge: AWG22

    Installation notes

    • Installation requires delicate soldering. Seek a professional if you are not confident in performing the work. We accept no liability for any issues arising from improper installation.
    • A high torque motor is recommended to utilise the active braking feature.
    • A functional cut- off lever, selector plate, anti-reversal latch, trigger and trigger block are required for correct functionality.
