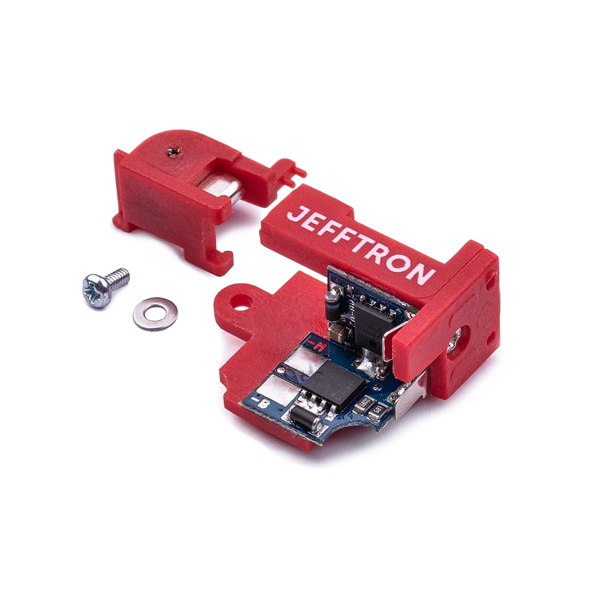

Upgrade your AEG with V2 gearbox for peak performance with the JeffTron Active Brake V2, a professional-grade MOSFET featuring motor braking technology.

This device is fitted in place of the standard trigger switch to ensure a full cycle with every trigger pull, eliminating jams when firing semi-auto. The Active Braking feature briefly reverses the current through the motor bringing it to a faster more precise stop.

• Comes without wiring to add non-standard lengths
• Enhances trigger response and rate of fire
• Improves battery efficiency
• Reduces stress and wear on the gearbox
• Conformal coated for water resistance
• No current consumption when idle
• Eliminates arcing between switch contacts

Specifications

• Maximum spring rating: M160
• Maximum battery voltage: 17V
• Current limit: Semi-auto 75A / Auto 25A
• Power wire gauge: AWG16
• Signal wire gauge: AWG22

Installation notes

• Installation requires delicate soldering. Seek a professional if you are not confident in performing the work. We accept no liability for any issues arising from improper installation.
• A high torque motor is recommended to utilise the active braking feature.
• A functional cut-off lever, selector plate, anti-reversal latch, trigger, and trigger block are required for correct functionality.
