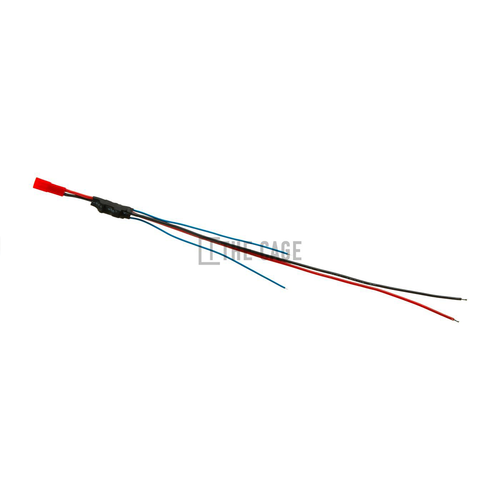

Optimise your AEG's rate of fire and battery capacity with the JeffTron MOSFET II, a professional-grade MOSFET.

Features

• Comes with presoldered wires for faster installation, simply cut to required length and attach included connectors
• Enhances trigger response and rate of fire
• Improves battery efficiency
• Reduces stress and wear on the gearbox
• Conformal coated for water resistance
• No current consumption when idle
• Eliminates arcing between switch contacts

Specifications

• Maximum spring rating: M210
• Maximum battery voltage: 17V
• Current limit: Semi-auto 150A / Auto 50A
• Maximum Power wire gauge: AWG16
• Maximum Signal wire gauge: AWG20

Installation notes

• Installation requires delicate soldering. Seek a professional if you are not confident in performing the work. We accept no liability for any issues arising from improper installation.
• A high torque motor is recommended to utilise the active braking feature.
• A functional cut-off lever, selector plate, anti-reversal latch, trigger, and trigger block are required for correct functionality.
