Upgrade your V2 AEG for peak performance with the JeffTron MOSFET V2, a professional-grade MOSFET featuring motor braking technology.

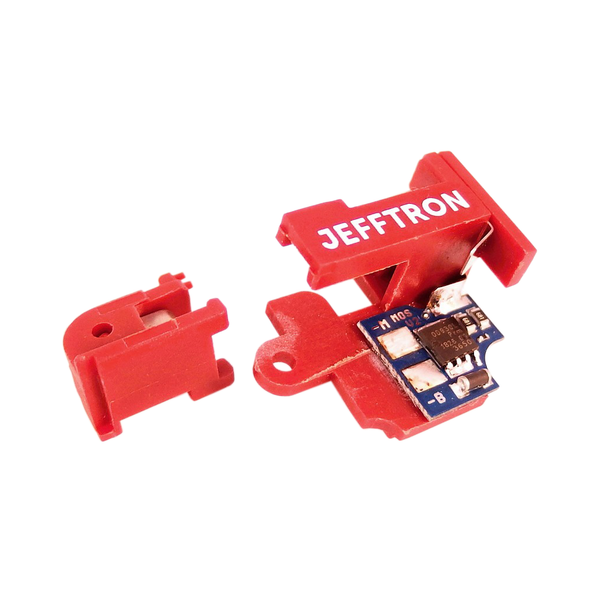

This device helps increase rate of fire and improves battery consumption. The electronic circuit eliminates sparking with mechanical contacts and draws no current when idle. The board is built into a standard V2 switch trolley for easy installation in Tokyo Marui compatible V2 gearboxes.

• Built on SHS trigger contacts
• Comes without wiring for convenient custom builds
• Enhances rate of fire
• Improves battery efficiency
• Reduces stress and wear on the gearbox
• Conformal coated for water resistance
• No current consumption when idle
• Eliminates arcing between switch contacts

Specifications

• Maximum spring rating: M170
• Maximum battery voltage: 17V
• Current limit: Semi-auto 90A / Auto 35A
• Maximum Power wire gauge: AWG16
• Maximum Signal wire gauge: AWG20

Installation Notes

Installation requires delicate soldering. Seek a professional if you are not confident in performing the work. We accept no liability for any issues arising from improper installation.

A functional cut-off lever, selector plate, anti-reversal latch, trigger, and trigger block are required for correct functionality.
